XO晶體振蕩器530BC155M520DG適用于超聲波應用

來源：*** 查看手機網址

掃一掃!

掃一掃!

瀏覽：- 發布日期：2023-05-31 16:29:15【大中小】

分享到：

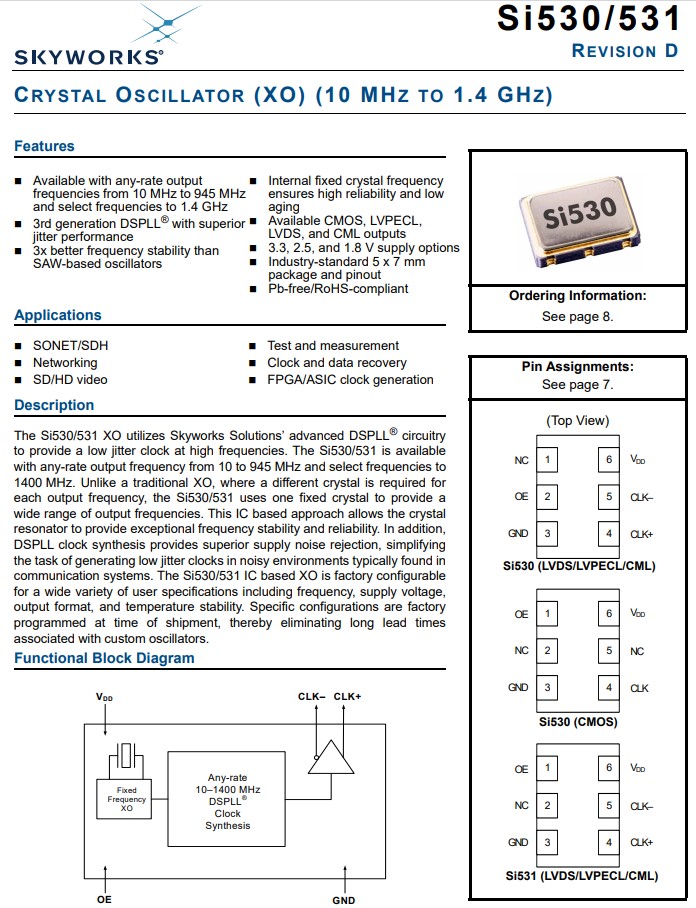

Silicon晶振Si530 XO利用天空工作解決方案的先進DSPLL®電路提供一個高頻低抖動時鐘。石英晶體振蕩器Si530可提供從10到945MHz的任意速率輸出頻率，并選擇頻率到1400MHz。與傳統的XO不同，每個輸出頻率都需要一個不同的晶體，而Si530使用一個固定的晶體來提供一個大范圍的輸出頻率。這種基于集成電路的方法允許晶體諧振器提供特殊的頻率穩定性和可靠性。此外，DSPLL時鐘合成提供了優越的電源噪聲抑制，簡化了在通信系統中通常發現的噪聲環境中產生低抖動時鐘的任務。貼片晶振Si530 IC的XO可在工廠中進行配置，可用于各種用戶規格，包括頻率、電源電壓、輸出格式和溫度穩定性。特定的配置在裝運時被工廠編程，從而消除了與定制振蕩器相關的長交貨時間。XO晶體振蕩器530BC155M520DG適用于超聲波應用

原廠代碼	晶振廠家	型號	頻率	電壓	頻率穩定度	包裝/封裝
530FB125M000DG	Silicon晶振	Si530	125MHz	2.5V	±20ppm	6-SMD, No Lead
530BB125M000DG	Silicon晶振	Si530	125MHz	3.3V	±20ppm	6-SMD, No Lead
530FB200M000DG	Silicon晶振	Si530	200MHz	2.5V	±20ppm	6-SMD, No Lead
530BC156M250DG	Silicon晶振	Si530	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
530BA125M000DG	Silicon晶振	Si530	125MHz	3.3V	±50ppm	6-SMD, No Lead
530BB100M000DG	Silicon晶振	Si530	100MHz	3.3V	±20ppm	6-SMD, No Lead
530FC156M250DG	Silicon晶振	Si530	156.25MHz	2.5V	±7ppm	6-SMD, No Lead
530FA156M250DG	Silicon晶振	Si530	156.25MHz	2.5V	±50ppm	6-SMD, No Lead
530FC125M000DG	Silicon晶振	Si530	125MHz	2.5V	±7ppm	6-SMD, No Lead
530AC622M080DG	Silicon晶振	Si530	622.08MHz	3.3V	±7ppm	6-SMD, No Lead
530AC125M000DG	Silicon晶振	Si530	125MHz	3.3V	±7ppm	6-SMD, No Lead
530AC200M000DG	Silicon晶振	Si530	200MHz	3.3V	±7ppm	6-SMD, No Lead
530BC200M000DG	Silicon晶振	Si530	200MHz	3.3V	±7ppm	6-SMD, No Lead
530FC200M000DG	Silicon晶振	Si530	200MHz	2.5V	±7ppm	6-SMD, No Lead
530AC156M250DG	Silicon晶振	Si530	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
530AC155M520DG	Silicon晶振	Si530	155.52MHz	3.3V	±7ppm	6-SMD, No Lead
530BC148M500DG	Silicon晶振	Si530	148.5MHz	3.3V	±7ppm	6-SMD, No Lead
530AC106M250DG	Silicon晶振	Si530	106.25MHz	3.3V	±7ppm	6-SMD, No Lead
530EC106M250DG	Silicon晶振	Si530	106.25MHz	2.5V	±7ppm	6-SMD, No Lead
530FC106M250DG	Silicon晶振	Si530	106.25MHz	2.5V	±7ppm	6-SMD, No Lead
530BC106M250DG	Silicon晶振	Si530	106.25MHz	3.3V	±7ppm	6-SMD, No Lead
530EC155M520DG	Silicon晶振	Si530	155.52MHz	2.5V	±7ppm	6-SMD, No Lead
530EC187M500DG	Silicon晶振	Si530	187.5MHz	2.5V	±7ppm	6-SMD, No Lead
530AC000110DG	有源晶振	Si530	148.35165MHz	3.3V	±7ppm	6-SMD, No Lead
530AC148M500DG	Silicon晶振	Si530	148.5MHz	3.3V	±7ppm	6-SMD, No Lead
530EC000110DG	Silicon晶振	Si530	148.35165MHz	2.5V	±7ppm	6-SMD, No Lead
530FC000110DG	Silicon晶振	Si530	148.35165MHz	2.5V	±7ppm	6-SMD, No Lead
530BC155M520DG	Silicon晶振	Si530	155.52MHz	3.3V	±7ppm	6-SMD, No Lead
530EC156M250DG	Silicon晶振	Si530	156.25MHz	2.5V	±7ppm	6-SMD, No Lead
530AC187M500DG	Silicon晶振	Si530	187.5MHz	3.3V	±7ppm	6-SMD, No Lead
530BC187M500DG	Silicon晶振	Si530	187.5MHz	3.3V	±7ppm	6-SMD, No Lead
530FC187M500DG	Silicon晶振	Si530	187.5MHz	2.5V	±7ppm	6-SMD, No Lead
530EC148M500DG	Silicon晶振	Si530	148.5MHz	2.5V	±7ppm	6-SMD, No Lead
530EC200M000DG	Silicon晶振	Si530	200MHz	2.5V	±7ppm	6-SMD, No Lead
530FC155M520DG	Silicon晶振	Si530	155.52MHz	2.5V	±7ppm	6-SMD, No Lead
530BC000110DG	Silicon晶振	Si530	148.35165MHz	3.3V	±7ppm	6-SMD, No Lead
530FC148M500DG	石英晶振	Si530	148.5MHz	2.5V	±7ppm	6-SMD, No Lead
530EC312M500DG	Silicon晶振	Si530	312.5MHz	2.5V	±7ppm	6-SMD, No Lead
530BC250M000DG	Silicon晶振	Si530	250MHz	3.3V	±7ppm	6-SMD, No Lead
530EC311M040DG	Silicon晶振	Si530	311.04MHz	2.5V	±7ppm	6-SMD, No Lead
530FC311M040DG	Silicon晶振	Si530	311.04MHz	2.5V	±7ppm	6-SMD, No Lead
530FC622M080DG	Silicon晶振	Si530	622.08MHz	2.5V	±7ppm	6-SMD, No Lead
530BC311M040DG	Silicon晶振	Si530	311.04MHz	3.3V	±7ppm	6-SMD, No Lead
530EC622M080DG	Silicon晶振	Si530	622.08MHz	2.5V	±7ppm	6-SMD, No Lead
530BC622M080DG	Silicon晶振	Si530	622.08MHz	3.3V	±7ppm	6-SMD, No Lead
530AC311M040DG	Silicon晶振	Si530	311.04MHz	3.3V	±7ppm	6-SMD, No Lead
530FC312M500DG	Silicon晶振	Si530	312.5MHz	2.5V	±7ppm	6-SMD, No Lead
530AC312M500DG	Silicon晶振	Si530	312.5MHz	3.3V	±7ppm	6-SMD, No Lead
530EC250M000DG	Silicon晶振	Si530	250MHz	2.5V	±7ppm	6-SMD, No Lead

XO晶體振蕩器530BC155M520DG適用于超聲波應用

特征：可與任意速率輸出頻率從10 MHz到945 MHz和選擇頻率1.4 GHz，第三代DSPLL®具有優越的抖動性能，3倍更好的頻率穩定比鋸振蕩器，內部固定晶體頻率確保高可靠性和低老化，可用CMOS，LVPECL，LVDS，和CML輸出差分晶體振蕩器，3.3V，2.5V，和1.8V供應選項，工業標準7.0x5.0毫米包和針形，無鉛/RoHS兼容

應用于：超聲波/SDH，網絡，SD/HD視頻，測試和測量，時鐘和數據恢復，F(xiàn)PGA/ASIC時鐘生成

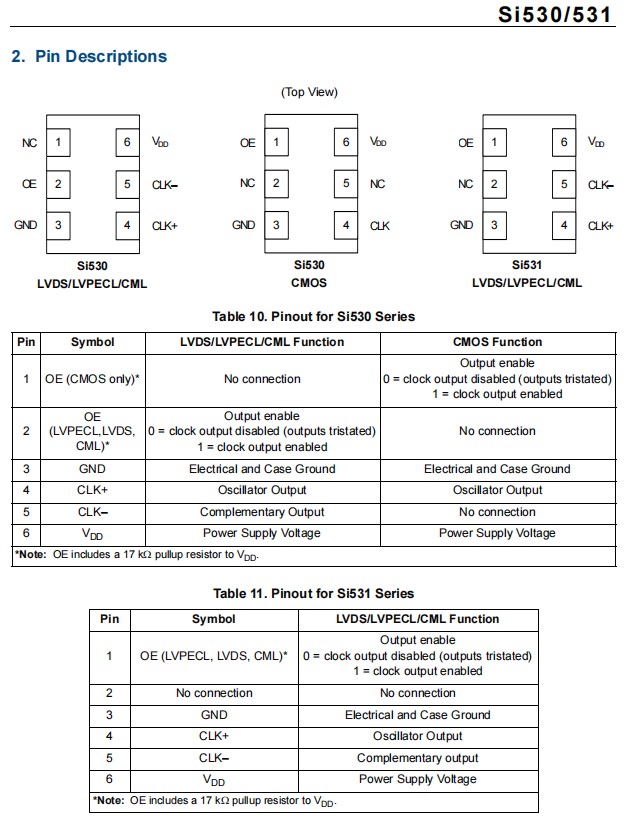

Si530/531 XO有源晶振支持多種選項，包括頻率、溫度穩定性、輸出格式和VDD。特定的設備配置在裝運時被編程到Si530/531中?？梢允褂孟旅娴牧慵柵渲脠D來指定配置。Skyworks解決方案提供了一個基于web瀏覽器的部件號配置實用程序，以簡化這個過程。
